New Solution Available | DIN PN63/100 Valves

We are pleased to introduce the DIN valves designed and developed for high demanding industry processes.

FIGURE Z
SIZE RATING
DN15-50 | PN63
DN15-50 | PN100

FIGURE ZV
SIZE RATING
DN65-100 | PN63
DN65-100 | PN100

- Valves in compliance with ISO 15848 for Low Fugitive Emission.
- Auto adjustable packing that make the valves be maintenance free.
- Self-cavity pressure relief to avoid risks and harming the pipelines.

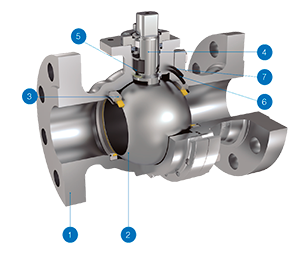

MATERIALS
1	BODY	1.620/1.4408
2	BALL	1.4408
3	SEAT	PTFE (T)/PEEK
4	STEM	XM-19
5	STEM SEAL	PEEK
6	BODY SEAL	PTFE + CG
7	BODY SEAL	GRAPHITE
